330171-00-08-10-01-05 Proximity Probes Stock And New

330171-00-08-10-01-05 Proximity Probes stock and new

State Bently Nevada Corporation 3300 XL Bentley bently3500, 3300XL vibration monitoring products, bently3300XL eddy current sensor vibration probe measurement principle: is through the probe end and the measured object gap changes to measure vibration and static displacement. Can continuously monitor vibration parameters and process parameters, such as shaft vibration, shaft displacement, speed, eccentricity, etc., can provide a powerful means of analysis for equipment accidents such as unbalance, misalignment, rotor touching, loosening and bearing damage and other faults found, and provide reliable protection for equipment.

Bentley bently3300XL eddy current sensor vibration probe system to monitor the following large and medium-sized rotating machinery vibration monitoring. The bently3300 XL eddy current sensor system consists of: eddy current sensor probe, extension cable, preamplifier.

The bently3300 XL is used for shaft vibration, shaft displacement, key phase, and speed measurements on bearing machinery in accordance with American Petroleum Institute API 670.

The bently3300 XL 8mm eddy current sensor system receives signals from a non-contact bently3300 XL series 8mm eddy current probe and extension cable. Frequency response is 0-10kHz using three core field link shielded cable with a length of 305 meters from the 3300 XL preamplifier to the monitor. Power supply -17.5Vdc to -26Vdc at 12mA.

Bentley bently 3300XL 8 mm eddy current sensor vibration probe with a linear range of 2 mm and a sensitivity of 7.87 V/mm (200mV/mil) ±5%, preamplifier weight 246g, preamplifier 330180-50-00 temperature range operating temperature -35°C to +85°C.

The 3300 XL Preamplifier 330180-AXX-BXX is available in overall lengths of 1m, 5m and 9m systems, the 5m probe can only be used with the 5m preamplifier. Mounting options are rail mount and panel mount, approval agency options for non-required and hazardous areas approved explosion-proof certification after 05 upgraded to CN, generally used in chemical plants or refineries and other explosion-proof requirements of the place.

Bentley bently3300XL eddy current sensor system probes, extension cables and preamplifiers are fully interchangeable, without the need for a separate matching components or bench calibration calibration, verification equipment with the Bentley eddy current probe flow calibrator TK-3E.

Commonly used Bentley bently3300XL eddy current sensor vibration probe models are listed below:

• Brand/ Manufacturer:

  Bently Nevada

• Manufacturer Part Number:

  330171-00-08-10-01-05

• Additional Information:

  3300 XL 8mm Extension Cable

• Condition:

  Brand New Factory Sealed - Original

• Availability:

  1

• Warranty:

  12 Months

• Estimated Weight:

  1 kg

• Country of Origin:

  USA

• HS Code:

  8538900000

• Shipping:

  Worldwide by DHL /Fedex /TNT / UPS

330171-00-08-10-01-05 new Proximity Probes

330171-00-08-10-01-05 stock Proximity Probes

330171-00-08-10-01-05 Proximity Probes

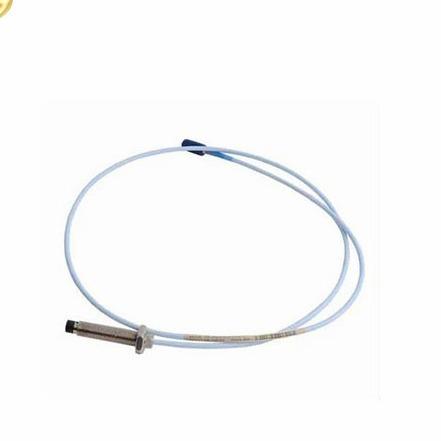

330171-00-08-10-01-05 Proximity Probes Stock And New Images
